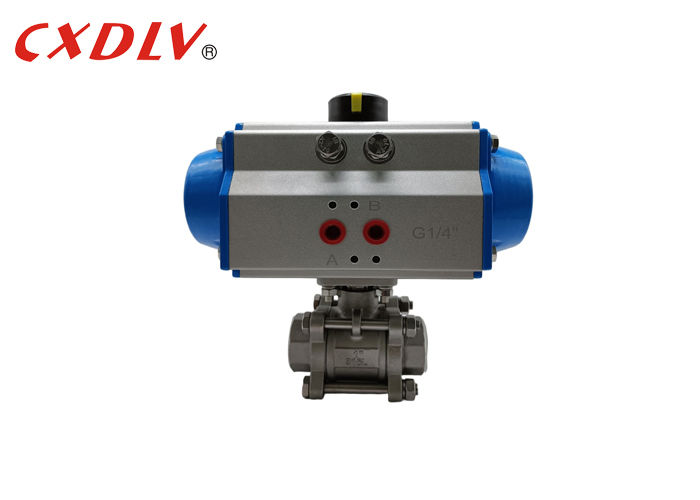

Convenient Monitoring Pneumatic Actuated Ball Valve for Seamless Integration with Limit Switch Box
Λεπτομέρειες:
| Τόπος καταγωγής: | ΚΙΝΑ |
| Μάρκα: | CXDLV |
| Πιστοποίηση: | CE&ISO |
| Αριθμό μοντέλου: | Q611F |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1PC |
|---|---|
| Τιμή: | Διαπραγματεύσιμα |
| Συσκευασία λεπτομέρειες: | Κατάλληλες θήκες από κόντρα πλακέ σύμφωνα με διαφορετική δομή βαλβίδων |
| Χρόνος παράδοσης: | 5 ~ 25 εργάσιμες ημέρες |
| Όροι πληρωμής: | T/T, PayPal, Western Union, D/A, L/C, D/P, MoneyGram |
| Δυνατότητα προσφοράς: | 500pcs/mon |
|
Λεπτομερής ενημέρωση |
|||
| Υλικό σώματος: | CF8, CF8M, WCB, CF3, CF3M | Υλικό καθίσματος: | Πτέρυγα |
|---|---|---|---|
| Ενεργοποιητής: | Διπλής Ενέργειας, Μονής Ενέργειας | Πρότυπο: | Βρετανία, ANSI, JIS, DIN |
| Μέγεθος: | 1/2 "~ 8" | Μέσον: | Αέριο πετρελαίου |
| Επισημαίνω: | pneumatic actuated ball valve with limit switch,seamless integration pneumatic ball valve,monitoring pneumatic actuated ball valve |
||
Περιγραφή προϊόντων
PN16 Pneumatic Actuated Ball Valve Double Acting Piston Double Flange Ends
Specifications
- Rack and pinion design rotary quarter turn pneumatic actuator
- Double Acting or Spring Return Version
- ISO5211, DIN3337 and Namur interfaces for easy mounting to valve, limit switch box and positioner
- Suitable for indoor and outdoor application
- Torque output from 3Nm to 13,024Nm (DA version) and 4Nm to 6,584Nm (SR version)
- Aluminium alloy housing with nickel plated pinion
- Travel angle 90° with travel stop adjustment of ± 5℃
- Operating pressure from 2 bar up to 8 bar at temperature from -20℃ to +80℃
Advantage
1. Type Three Piece : Full Bore : Pneumatically Actuated (Single or Double Acting)
2. Size & Connections 6mm (1/4″) to 100mm (4″) BSP Female (NPT, BSPT on request)
3. Duty Air : Inert Gas : Oil : Process : Steam : Water
4. Materials Stainless Steel Body, Ball & Stem : RPTFE Seat
Technical Data
Double Acting Pneumatic Actuator Ordering No.
| Model No | Torque(6Bar) | |
| Open | Close | |
| ACT 050S | 13.2Nm | 6.7Nm |
| ACT 063S | 24.1Nm | 11.1Nm |
| ACT 075S | 47.7Nm | 22.1Nm |
| ACT 090S | 73.1Nm | 36.7Nm |
| ACT 100S | 109Nm | 50.7Nm |
| ACT 115S | 176Nm | 82Nm |
| ACT 125S | 227Nm | 105Nm |
| ACT 145S | 357Nm | 165Nm |
| ACT 160S | 456Nm | 224Nm |
| ACT 190S | 871Nm | 379Nm |
| ACT 210S | 1000Nm | 521Nm |
| ACT 240S | 1423Nm | 721Nm |
| ACT 270S | 2345Nm | 1060Nm |
| ACT 300S | 2956Nm | 1460Nm |
| ACT 350S | 4247Nm | 2346Nm |
| ACT 400S | 6559Nm | 2624Nm |
Accessories which can use with this Ball Valve
On/off Indicator
Namur Standard Solenoid Valve in all Standard
Pneumatic & Electric-Pneumatic Valve Positioner
Declutchable Manual Override
Limit Switches for On/Off Indication at Panel Board
Filter + Regulator Combination with Pressure Gauge
Model Selection
3PC Thread Pneumatic Ball Valve
| Product Name | 3PC Thread Ball Valve | |||
| Pressure | 1000WOG | |||
| Valve Matreial | CF8/SS304 | CF8M/SS316 | WCB | |
| Connection | BSP/BSPT/NPT | |||
